Diaphragm Pumps

The project of the new FLUIMAC double diaphragm pumps mainly developed around the air distribution system, the high technology of the membranes, the geometry of the pumping chambers and the valve system; this in order to expand its functionality, not only for the transfer but also for the dosage. The result obtained is an innovative product with latest generation solutions. FLUIMAC diaphragm pumps are made of PP, PVDF, ALUMINUM and AISI 316.

  • P3 - Diaphragm Pumps
  • P7 - Diaphragm Pumps
  • P18 - Diaphragm Pumps
  • P30 - Diaphragm Pumps
  • P55 - Diaphragm Pumps
  • P120 - Diaphragm Pumps
  • P170 - Diaphragm Pumps
  • P400 - Diaphragm Pumps
  • P700 - Diaphragm Pumps
  • P1000 - Diaphragm Pumps

P3 - Diaphragm Pumps


  • Fluid Connections : 1/4” BSP
  • Air connection : 4 mm
  • Max flow rate : 4 lt/min
  • Max pressure : 6 bar
  • Max head : 60 m
  • Max dry suction : 3 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 2 mm
  • Noise level : 62 dB
  • Max viscosity : 65,000 cps
  • Volume per shot : 18 CC ~
# Name Click To View
1 Technical Sheet P3 - PP

P7 - Diaphragm Pumps


  • Fluid Connections : 1/4” BSP
  • Air connection : 4 mm
  • Max flow rate : 7 lt/min
  • Max pressure : 6 bar
  • Max head : 60 m
  • Max Suction Lift Dry : 3 m
  • Max Suction Lift Wet : 9.8 m
  • Max solid passing : 2 mm
  • Noise level : 62 dB
  • Max viscosity : 5.000 cps
  • Displacement per Stroke : 18 CC ~
Sr.No. Name Click To View
1 Data Sheet P7 - PP
1 Data Sheet P7 - PVDF+CF
1 Data Sheet P7 - POMc

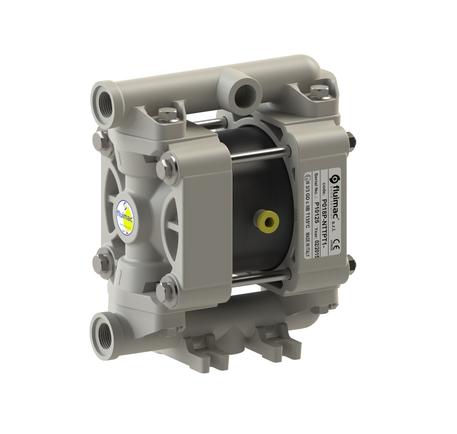

P18 - Diaphragm Pumps


  • Fluid Connections : 3/8” BSP
  • Air connection : 6 mm
  • Max flow rate : 20 lt/min
  • Max air pressure : 6 bar
  • Max delivery head : 70 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9.8 m
  • Max solid passing : 2,5 mm
  • Noise level : 65 dB
  • Max viscosity : 10.000 cps
  • Displacement per Stroke : 30 CC ~
Sr.No. Name Click To View
1 Data Sheet P18 - PP
1 Data Sheet P18 - PVDF+CF
1 Data Sheet P18 - POMc
1 Data Sheet P18 - SS

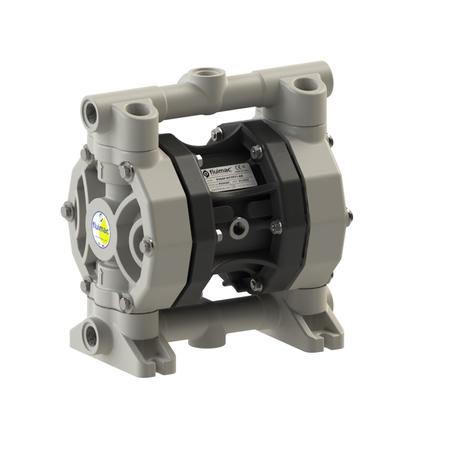

P55 - Diaphragm Pumps


  • Fluid Connections : 1/2” BSP
  • Air connection : 1/4” mm
  • Max flow rate : 55 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max solid passing : 3,5 mm
  • Noise level : 70 dB
  • Max viscosity : 20.000 cps
  • Displacement per Stroke : 140 CC ~
Sr.No. Name Click To View
1 Data Sheet P55 - PP
1 Data Sheet P55 - PVDF+CF

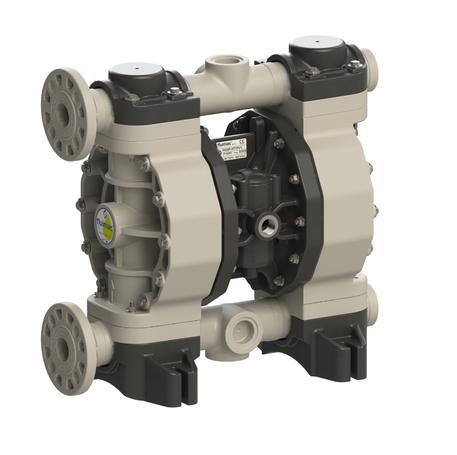

P170 - Diaphragm Pumps


  • Fluid Connections : 1” BSP - DN25
  • Air connection : 1/2” BSP
  • Max flow rate : 170 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max solid passing : 7,5 mm
  • Noise level : 75 dB
  • Max viscosity : 35.000 cps
  • Displacement per Stroke : 700 CC ~

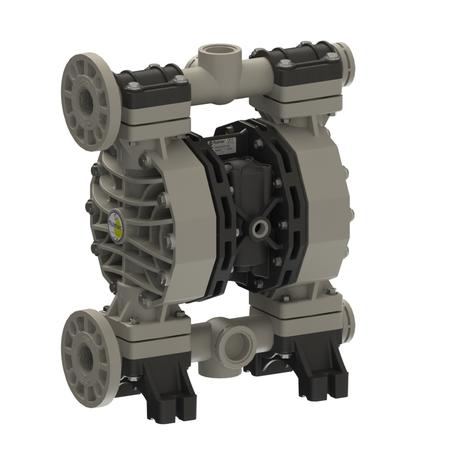

P400 - Diaphragm Pumps


  • Fluid Connections : 1” 1/2 BSP - DN 40
  • Air connection : 1/2” BSP
  • Max flow rate : 380 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max solid passing : 8 mm
  • Noise level : 78 dB
  • Max viscosity : 40.000 cps
  • Displacement per Stroke : 1200 CC ~
Sr.No. Name Click To View
1 Data Sheet P400 - PP
2 Data Sheet P400 - PVDF+CF
3 Data Sheet P400 - ALU
4 Data Sheet P400 - SS

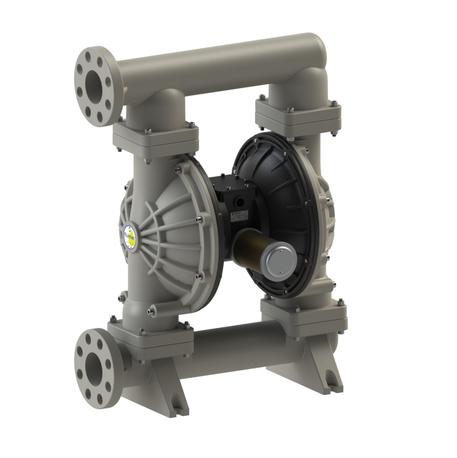

P1000 - Diaphragm Pumps


  • Fluid Connections : 3” BSP - DN 80
  • Air connection : 3/4” BSP
  • Max flow rate : 1050 lt/min
  • Max air pressure : 8 bar
  • Max delivery head : 80 m
  • Max Suction Lift Dry : 5 m
  • Max Suction Lift Wet : 9,8 m
  • Max solid passing : 12 mm
  • Noise level : 82 dB
  • Max viscosity : 55.000 cps
  • Displacement per Stroke : 9750 CC ~

P30 - Diaphragm Pumps


  • Fluid Connections : 1/2 ”BSP
  • Air connection : 6 mm
  • Max flow rate : 35 l / min
  • Max pressure : 7 bar
  • Max head : 70 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 3 mm
  • Noise level : 65 dB
  • Max viscosity : 15,000 cps
  • Volume per shot : 65 CC ~
# Name Click To View
1 Technical Sheet P30 - PP
1 Technical Sheet P30 - PVDF + CF
1 Technical Sheet P30 - ALU
1 Technical Sheet P30 - SS

P120 - Diaphragm Pumps


  • Fluid Connections : 1 ”BSP
  • Air connection : 3/8 ”BSP
  • Max flow rate : 120 l / min
  • Max pressure : 8 bar
  • Max head : 80 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 4 mm
  • Noise level : 72 dB
  • Max viscosity : 25,000 cps
  • Volume per shot : 200 CC ~

P700 - Diaphragm Pumps


  • Fluid Connections :2” BSP - DN 50
  • Air connection : 3/4 ”BSP
  • Max flow rate : 700 lt / min
  • Max pressure : 8 bar
  • Max head : 80 m
  • Max dry suction : 5 m
  • Suction with fluid Max : 9.8 m
  • Max solid passage : 8.5 mm
  • Noise level : 78 dB
  • Max viscosity : 50,000 cps
  • Volume per shot : 3050 CC ~
# Name Click To View
1 Technical Sheet P700 - PP
1 Technical Sheet P700 - PVDF + CF
1 Technical Sheet P700 - ALU
1 Technical Sheet P700 - SS
