INTRODUCTION OF PERISTALTIC TUBE PUMP


Sr.No. Name Click To View
1 Peristaltic Tube Pump Introduction

ACCESSORIES AND TUBING

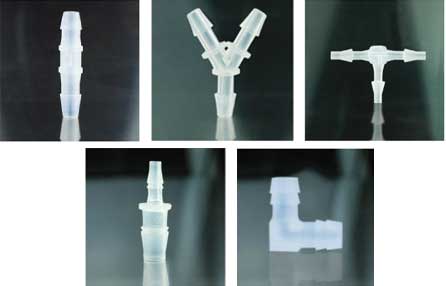

TUBE CONNECTOR

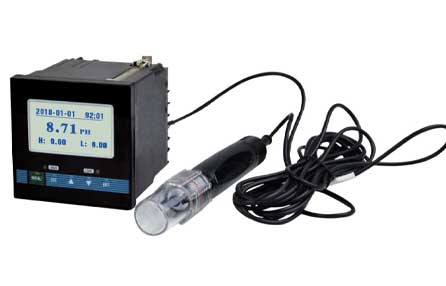

PH CONNECTOR

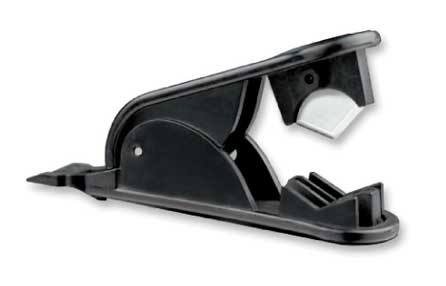

BENCHTOP TUBING CUTTER

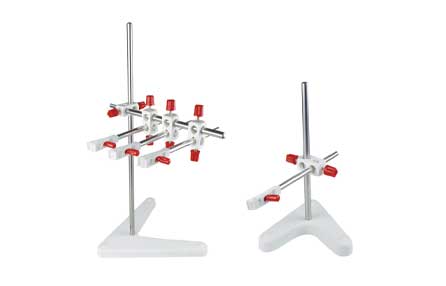

SUPPORT STAND



WIRELESS REMOTE

Sr.No. Name Click To View
1 Aceesories and Tubing

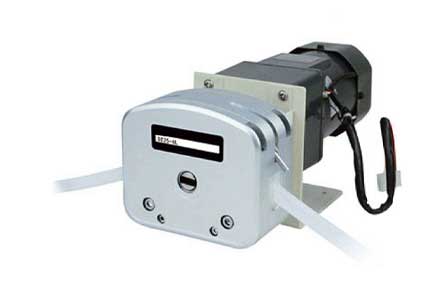

DZ PUMPS WITH MOTORS

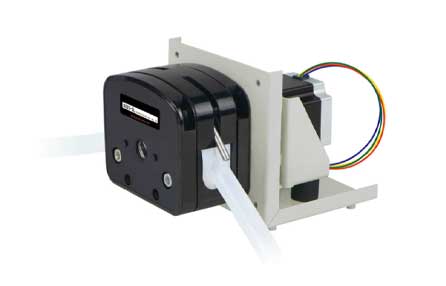

OEM-B403/DZ25-3L (Stepper Motor)



OEM-Z109/DZ25-3L (DC Motor)



OEM-J06/DZ25-3L (AC Motor)



OEM-J Series/DZ25-6L (AC Motor)

Sr.No. Name Click To View
1 DZ Pumps With Motors

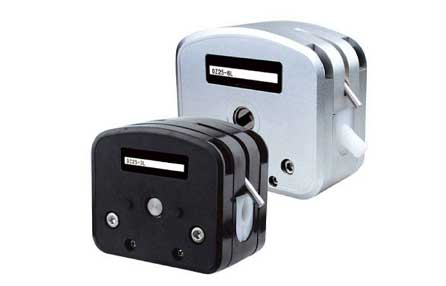

DZ25-3L-6L HEAD


Model No. Housing Material Tubing Clamp Material Tubing Sizes IDxWall Thickness Flow Rate (mL/min)(0.1-600rpm) Weight(Kg)
DZ25-6L Aluminium Alloy PP 15"
24"
35"
36"		 4.8x2.4(mm)
6.4x2.4(mm)
7.9x2.4(mm)
9.6x2.4(mm)		 0.3~1800
0.55~300
0.8~4800
1~6000		 1.86
DZ25-3L PPS/PSF PP 15"
24"
35"
36"		 4.8x2.4(mm)
6.4x2.4(mm)
7.9x2.4(mm)
9.6x2.4(mm)		 0.211~1264
0.385~2310
0508~3050
0.6~3600		 1.16/0.5
Sr.No. Name Click To View
1 DZ25-3L-6L Head

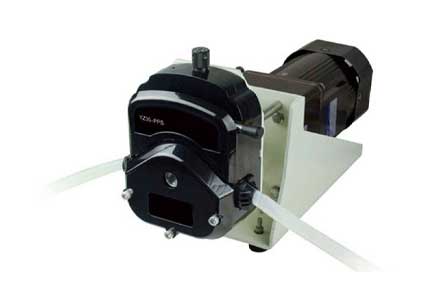

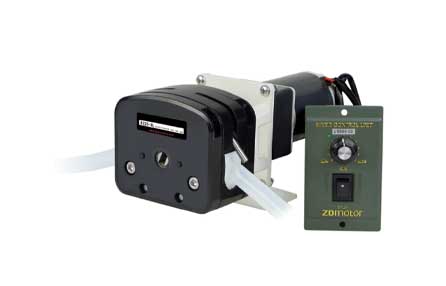

DZ-YZ PUMPS WITH AC MOTOR


Pump Head Pump Head Material Tubing Cartridge Material Tubing Sizes IDxWall Thickness Flow Rate (mL/min)(0-600rpm) Weight(Kg)
DZ25-6L Aluminium Alloy PP 15"
24"
35"
36"		 4.8x2.4(mm)
6.4x2.4(mm)
7.9x2.4(mm)
9.6x2.4(mm)		 <1800
<3300
<4800
<6000		 1.86

Sr.No. Name Click To View
1 DZ-YZ Pumps with AC Motor

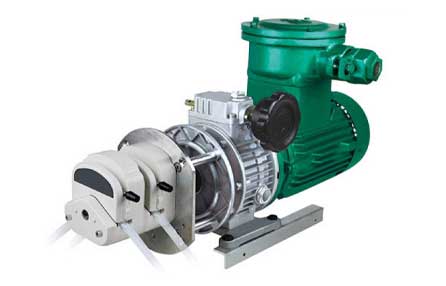

EXPLOSION PROOF PERISTALTIC PUMPS


  • Speed Range : 180-600rpm
  • Speed Control : Manual stepless speed regulation
  • Voltage : AC 3 phase 380V
  • Condition Temperature : 0~40C
  • Drive dimension : 424x230x330 (mm) (LxWxH)
  • Drive Weight : 30kg
  • Relative humidity : <80%
  • IP rate : IP55
Sr.No. Name Click To View
1 Explosion Proof Peristaltic Pumps

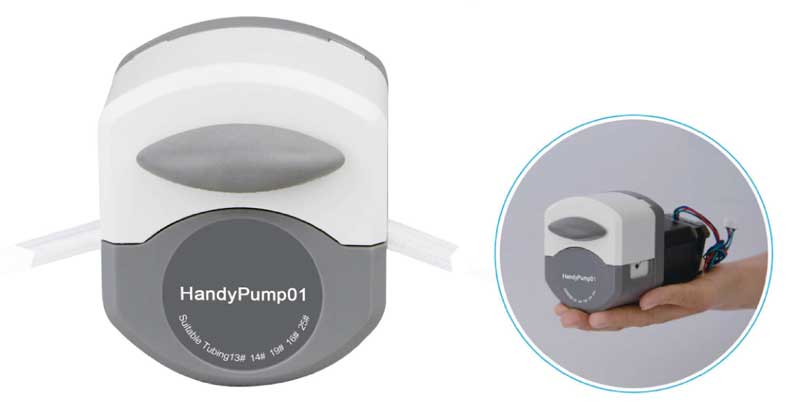

HANDY PUMP


  • Beautiful sppearance, compact size
  • Flow rate range : 0.0033-365.69mL/min
  • Front knob to open the pump head, save space
  • Automatic tubing retention makes tube loading easy and quick
  • Single and dual-channel head available
  • 5 different sizes tubing to meet different flow rate requirements
Sr.No. Name Click To View
1 Handy Pump

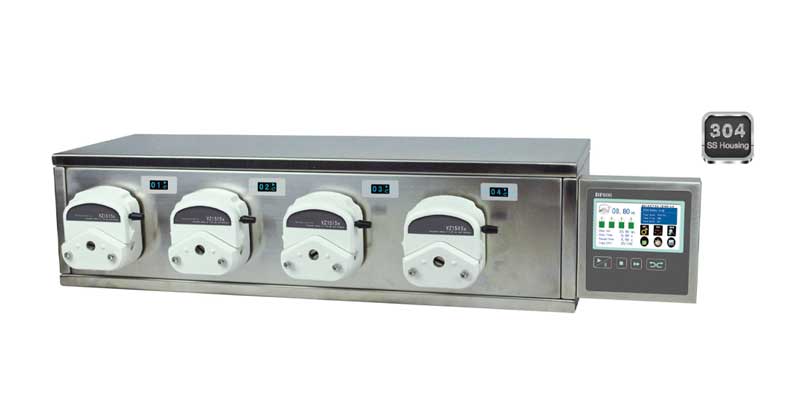

INTEGRATED MULTICHANNEL FILLING SYSTEM


  • Integrated design, one controller can control 4 groups (total 16) filling units.
  • It can support the production filling line, store 60 commonly used filling modes.
  • Each filling unit can independently receive stop filling signal when bottle absent.
Sr.No. Name Click To View
1 Integrated Multichannel Filling system

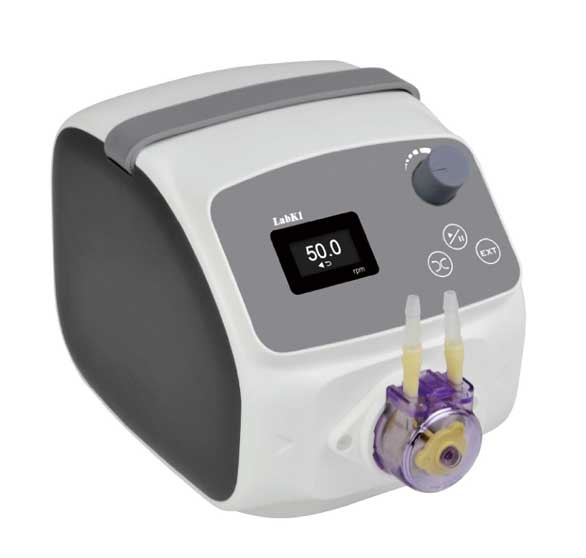

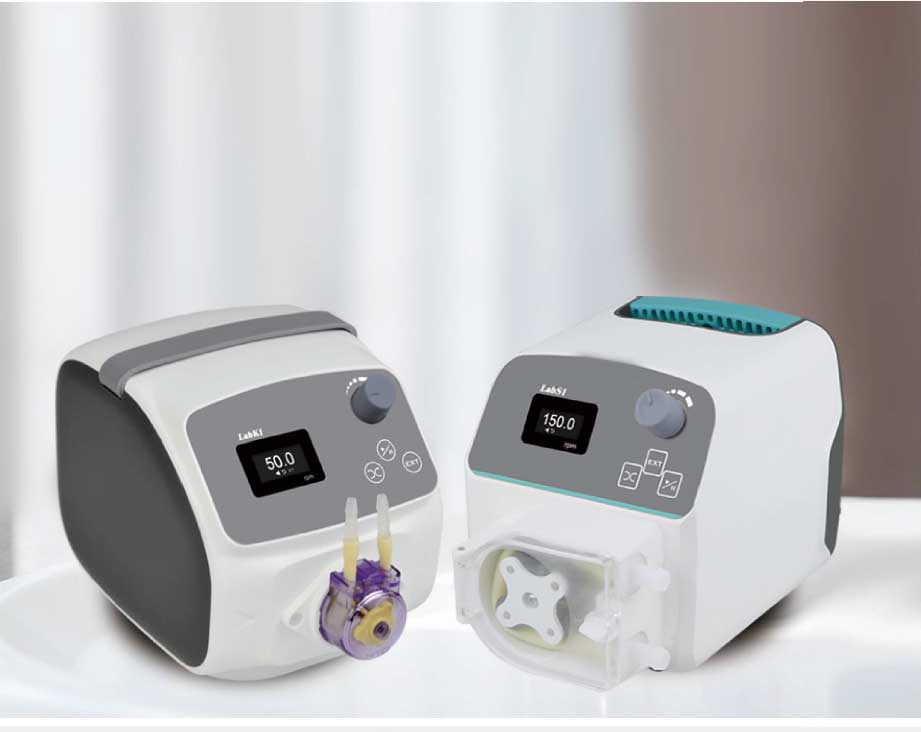

LAB K1, LAB K3


  • Flow rate range : 0.004-149.23ml/min
  • Speed range : LabK1:0.1-150rpm reversible
    LabK3:0.1-350rpm reversible
  • Speed resolution : 0.1rpm
  • Speed control : Digital knob
  • Control method : Mechanical keypad
  • Keypad lifetime : 300,000 times
  • Display : 0.96" OLED display
  • Communication Interface : USB connector, RS485 interface (MODBUS protocol, RTU mode)
  • External control : Start/stop direction control (switch signal)
    0-5V, 4-20mA (standard)
    0-10V (optional)
  • Power adapter : DC 12V/1A with power adapter
  • Dimension : 180*115*125mm (LxWxH)
  • Weight : 0.8kg
  • Condition Temperature : 0-40C
  • Relative humidity : <80%
  • IP rate : IP31
Sr.No. Name Click To View
1 Lab K1, Lab K3

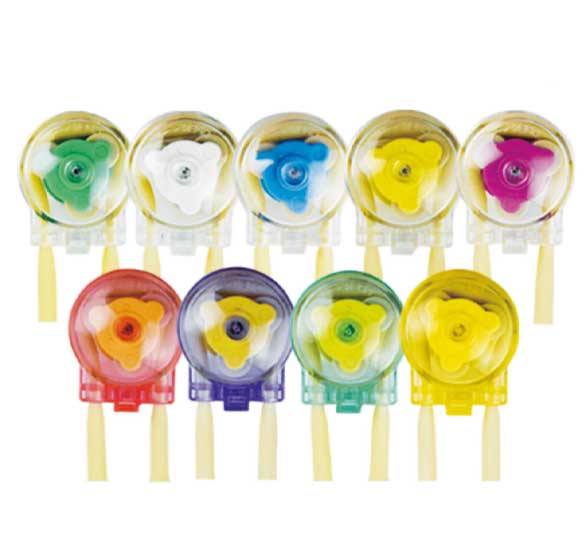

MICRO PUMP


  • Beautiful appearance, compact size, variety colors to choose, OEM ideal choie, can be driven by stepper motor, DC notor etc
Sr.No. Name Click To View
1 Micro Pump

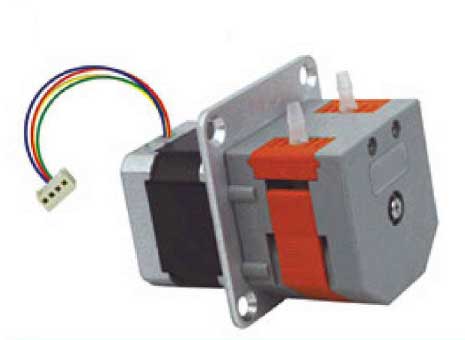

OEM B01 PUMP


  • Speed Range : <300rpm
  • Max Flow rate : 190mL/min
  • Motor type : 42 stepper motor
  • Motor phase number : 2
  • Motor step angle : 1.8
  • Motor phase voltage : 2.2V
  • Motor phase current : 1.0A
Sr.No. Name Click To View
1 OEM B01 Pump

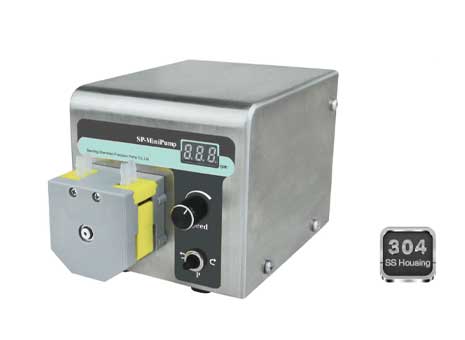

SP MINI PUMP


  • Flow rate range : 0.0024~190mL/min
  • Speed range : 0.1~300rpm, reversible
  • Speed resolution : 0.1rpm
  • Speed control : Digital knob control speed
  • Motor type : Stepper motor
  • Display : OLED display
  • Display : OLED display
  • External control : Start/stop control (switch signal)
    0-5V, 4-20mA (standard), 0-10V (optional)
  • Communication interface : RS485 support MODBUS protocol(RTU mode)
  • Power Supply : 24V/1A DC power
  • Drive dimension : 136x113x108 mm (LxWxH)
  • Weight : 1.64kg
  • Power Consumption : <15W
  • Condition Temperature : 0-40C
  • Relative humidity : <80%
  • IP rate : IP31
Sr.No. Name Click To View
1 SP Mini Pump

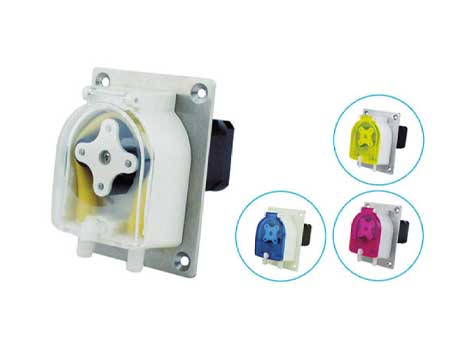

UD15 PUMP AND MOTOR


  • PES material, transparent protecting cover, easy to observe the working situation of pump head and tubing at any time. Various of colors are available.
  • There is water proof groove in the pump head mounting side.
  • Can use stepper motor, DC motor, AC motor and so on to drive.
Sr.No. Name Click To View
1 UD15 Pump and Motor

V6 -YZ1515X


  • Industrial Equipment Supporting
Sr.No. Name Click To View
1 V6 -YZ1515

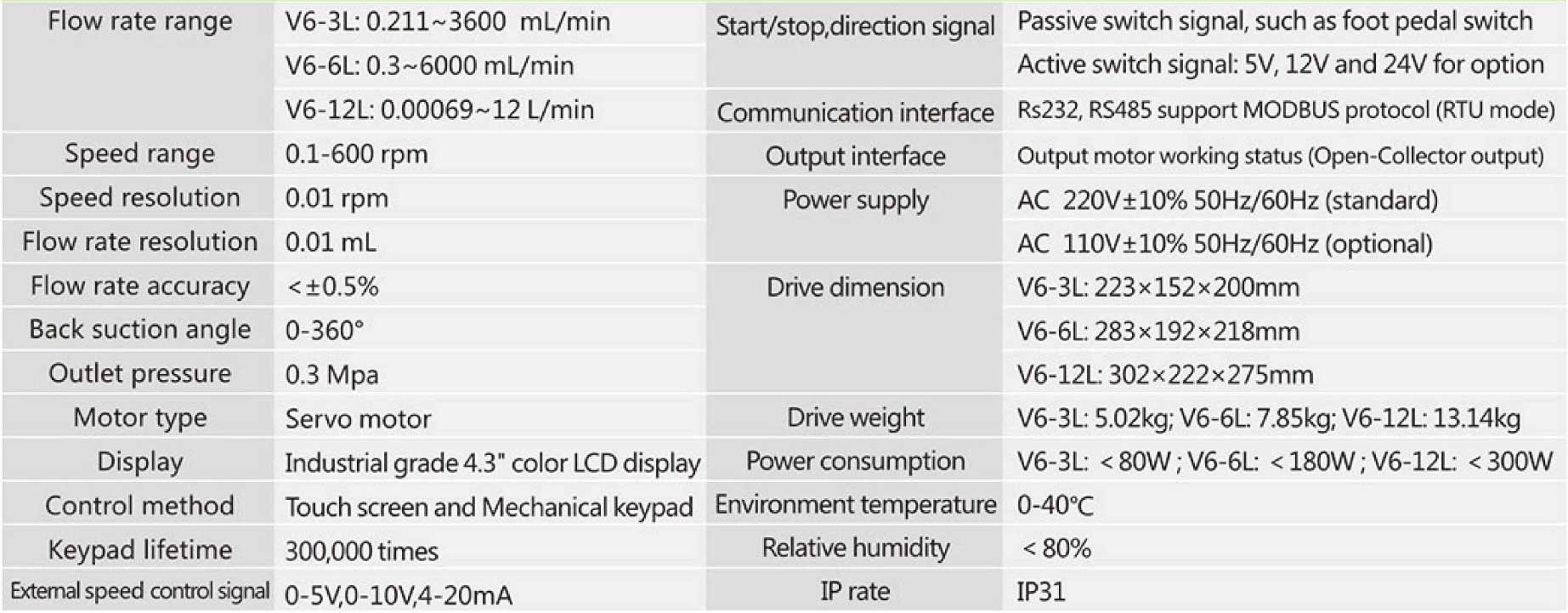

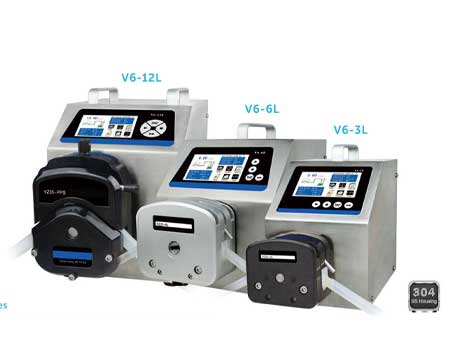

V6-3L-6L-12L


Sr.No. Name Click To View
1 V6-3L-6L-12L

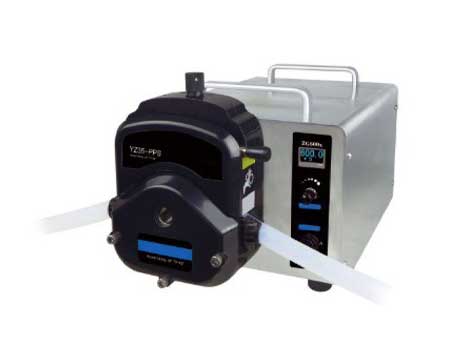

YZ35 HEAD


  • YZ35 pump head with aluminium alloy or PPS housing material.

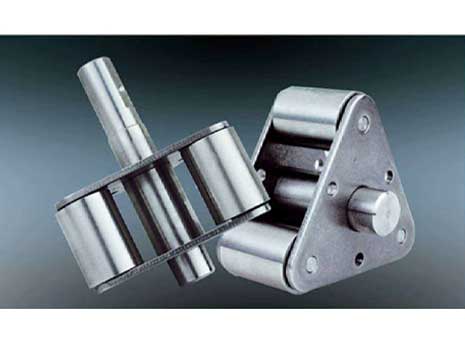

  • 304 stainless steel rollers assembly achieve high precision transferring liquid. Adaptive tubing cartridge structure makes it more easy to load the tubing.
Sr.No. Name Click To View
1 YZ35 Head

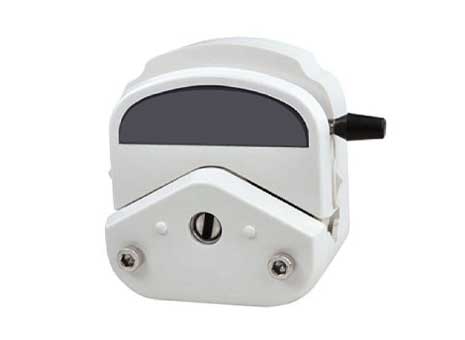

YZ1515X HEAD


  • Change the tubing easily and rapidly; automatic tubing retention; accept 9 sizes tubing to meet different flow rates requests. Two kinds of material housing for customers' selection. PSF (polysulphone material): white, exquisite appearance, good rigidity, high precision, usually used in research laboratory and supporting analytical device. PPS (polyphenylene sulfide material): black, resist organic solvent corrosion, high precision and rigidity, suitable for industry or other bad working conditions. Rollers assembly with 304 stainless steel material resists corrosion with long lifetime.
Sr.No. Name Click To View
1 YZ1515 Head

ZG600 PUMP


  • Industrial peristaltic pump type, flow rate: 414-12000mL/min. Use high power DC motor drive, strong power, can dirve two pump heads. Suitable for large flow rate or high pressure application, such as industry production and filtration system.
Sr.No. Name Click To View
1 ZG600 Pump
